The telescopic tribune indoor with bench seat

zł0.00
Tax included

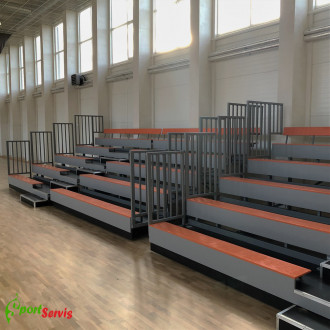

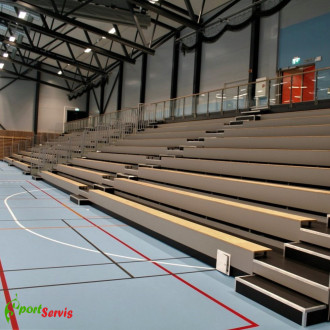

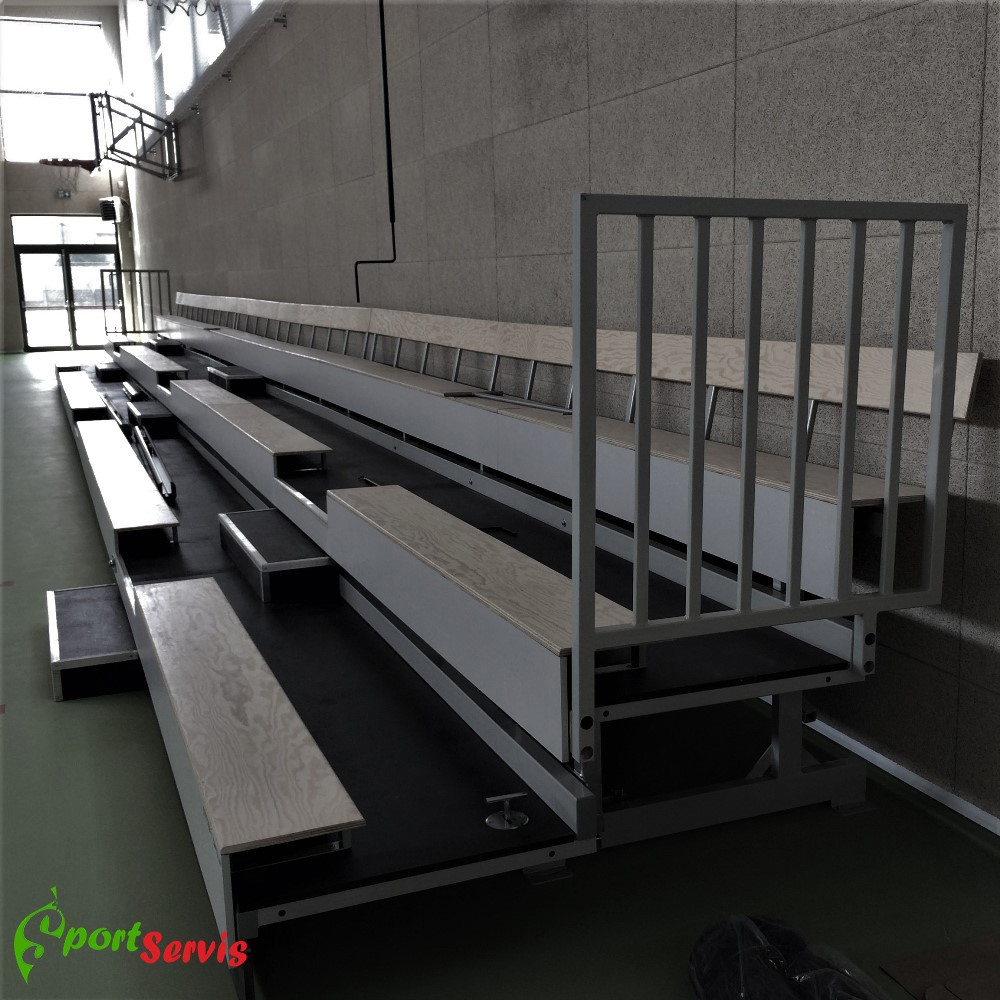

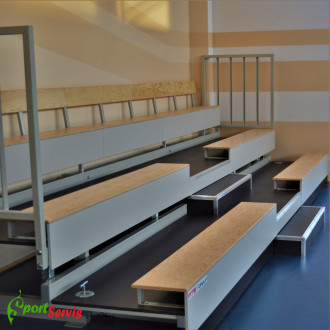

The telescopic tribune indoor with bench seat, intended for indoor sports halls

The telescopic tribune indoor with bench seat, intended for indoor sports halls , the structure is made of closed steel profiles, steel sheets, cold-bent sheets connected with each other by MIG welding and clean connection assembly using screws, bolts.

The structure is painted using the RAL powder method, color according to the available palette and on request.

Seats type bench (pine plywood) finished with ecological varnish. Seats can be painted with colorised lacquier, for the order.

The constructions platform is finished with an anti-slip plate with a thickness of 18mm, in brown or black. The space between the rows is filled with furniture boards, colors according to available colors with a thickness of 18mm.

Finishes: aluminum masking angles, side and rear barriers acc. needs. Additional stairs in passages (about 120-150cm wide). In accordance with PN-EN standards.

The tribune used in closed facilities is built according to the available space, specifications and needs. Standard depth 1 row about 130cm, available depth is 3-6 rows, others on request. Stand length as required.

The folding tribune is telescopic thanks to the appropriate construction and the system of road wheels, adapted to the sports surface, polyamide wheels of different gramature. The tribune open and close perpendicularly, operation is done manually or electrically.

The product is always made only to order based on direct arrangements and details.

TS-03-1

Data sheet

Composition
Steel
Finish
Powder coating
RAL palette
Unit
seat
Colour
RAL palette
Destiny
Indoor
Production time
arround 45 days
Availability
on the order
Characteristics
basic version with manual drive
extended version with electric drive
